Sản phẩm
Số lượng
Yêu cầu báo giá
Loại sản phẩm
Thương hiệu
Part No.

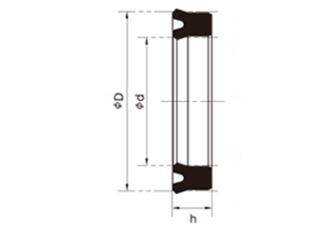

Kích thước lắp đặt
  • Đường kính trong ID
    mm
  • Đường kính ngoài OD
    mm
  • Chiều cao phốt H1
    mm
  • Chiều cao khe lắp H2
    mm

UPH

Cài đặt và xử lý

Kích thước lắp đặt

Thuộc tính vật liệu

Khả năng niêm phong

Download Chi tiết kỹ thuật (PDF)
Part No. ID OD H1 H2 Số lượng Chọn
CU0030D0 7.1 17.1 8
CU1805D0 365 395 22
CU2245D0 480 505 18
UPH9195NOK 9 19 5
CU0224D0 20 35 10
CU1391D2 155 180 15
CU0509D0 40 56 12
CU1519D0 190 215 15
CU0387D1 31.5 46.5 10
CU2036D0 600 630 28
CU1813D0 380 400 15
CU1844D0 450 480 22
CU0583D0 45 65 12
CU0249D0 22 35 10
CU1292D0 132 152 15
CU0864D0 70 90 15
CU0364D0 30 43 10
CU1061D0 95 120 15
CU1933D0 125 150 19
CU2196D0 18 33 10
CU0081D0 11.2 21.2 8
CU3317D0 53 69 12
CU0024D0 6.3 16.3 8
CU2347D0 27 40 10
CU0182D0 18 28 8
CU0122D0 14 24 8
CU1722D0 270 300 18
CU1224D2 120 140 15
CU2192D0 1100 1140 20
CU0161D0 16 32 10
CU0577D5 45 60 10
CU1793D1 335 355 14
CU0911D1 75 95 15
CU0137D0 15 28 10
CU1787D0 330 356 20
CU0309D0 25.5 35.5 8
CU1823D0 400 430 22
CU1207D0 118 138 15
CU1393D0 155 180 19
CU0121D0 14 24 7.5
CU1504D0 185 210 15
CU2244D0 445 470 18
CU0069D1 10 20 8
CU1257D0 125 145 15
CU2037D0 530 560 14
CU0505D3 40 55 10
CU1431D0 165 190 15
CU0239D0 21.5 31.5 8
CU1182D0 112 132 15
CU1883D0 825 850 15.5
CU1413D0 160 185 15
CU1960D0 135 160 19
CU1547D0 200 225 15
CU2303D0 371 396 16
CU1626D0 225 250 19
CU1811D0 370 400 25
CU0282D2 25 35 8
CU0438D0 35 50 12
CU1490D0 180 205 15
CU0862D1 70 90 12
CU1860D0 525 555 15
CU2084D0 530
CU0292D0 25 40 10
CU2350D0 200 225 19
CU1096D0 100 125 15
CU3358D0 400 432 24
CU0186D0 18 31 10
CU0156D0 16 26 7.5
CU0385D0 31.5 44.5 10
CU1873D0 700 730 15
CU1284D2 130 150 15
CU0508D0 40 56 10
CU0102D0 12.5 22.5 8
CU0301DO 25 45 12
CU1367D0 150 175 19
CU0831D0 67 87 12
CU0669D0 51 71 12
CU0757D1 60 76 12
CU1649D1 236 261 19
CU2189D0 520 550 17
CU1585D0 212 237 19
CU2243D0 345 365 14
CU1789D0 330 360 22
CU1327D1 140 160 15
CU1344D0 145 165 15
CU0580D0 45 61 12
CU1853D0 475 507 24
CU0263D0 22.4 32.4 8
CU0054D0 9 19 8
CU3308D0 6.3 16.3 7.5
CU1463D1 175 200 19
CU0265D1 22.4 35.4 10
CU0727D0 56 72 12
CU0068D0 10 20 7.5
CU0301D0 25 45 12
CU0470D1 38 52 10
CU3329D0 199 224 15.7
CU1877D0 760 800 34
CU3357D0 375 407 24
CU1752D0 290 320 22
CU1305D0 135 155 15
CU0910D1 75 95 12
CU3064D0 315 347 24
CU2123D1 64 80 12
CU1461D2 175 200 15
CU0601D1 48 63 10
CU0288D0 25 38 10
CU0408D0 34 50 12
CU1810D0 370 400 23
CU0704D1 55 71 12
CU1091D0 100 120 15
CU0282D0 25 35 8
CU1837D0 430 470 20
CU3312D0 12.5 22.5 7.5
CU3359D0 450 482 24
CU1532D0 199 224 15
CU0456D2 35.5 50.5 10
CU0885D0 71 91 15
CU2302D0 350 370 14
CU1198D0 115 135 15
CU0793D1 63 83 12
CU1843D0 440 480 35
CU1772D0 310 340 18
CU1138D0 106 126 15
CU0824D0 65 90 15
CU0523D0 41 56 10
CU3318D0 65 81 12
CU3320D0 130 155 19
CU1694D0 255 280 19
CU2087D1 348 380 24
CU1057D1 95 115 15
CU1750D0 290 320 18
CU1807D0 368 400 24
CU2160D0 600 630 20
CU1795D0 340 370 22
CU1819D0 395 425 22
CU3327D0 190 215 19
CU2197D0 335 367 24
CU1815D0 380 410 15
CU0403D0 32 46 10
CU1773D0 310 340 22
CU0819D1 65 85 12
UPH18020014NOK 180 200 14
CU1784D0 323 355 24
CU1818D0 390 420 22
CU0157D1 16 26 8
CU2101D0 320 340 12
CU1492D0 180 205 19
CU2124D0 825 860 27
CU1918D0 283 315 24
CU0441D0 35 51 12
CU1833D0 420 455 25
CU1683D1 250 275 19
CU0215D1 20 30 8
CU0761D1 60 80 12
CU0949D2 80 100 15
CU0712D0 55 80 15
CU2703D1 132 157 19
CU1089D3 100 120 12
CU1780D0 320 350 22
CU1916D0 355 387 24
CU2351D0 300 332 24
CU0368D2 30 45 10
CU1841DO 435 470 25
CU3311D0 11.2 21.2 7.5
CU3322D0 135 160 15.7
CU1799D2 350 380 22
CU2325D0 925 950 14
CU3319D0 67 87 15
CU1917D0 425 457 24
CU2851D0 80 95 9
CU0042D0 8 18 7.5
CU3309D0 7.1 17.1 7.5
CU3310D0 9 19 7.5
CU3323D0 155 180 15.7
CU1535D0 199 224 19
CU2451D0 32 45 10
CU1056D0 95 115 12
CU1803D0 360 390 22
CU1855D0 490 530 25
CU1129D2 105 125 15
CU0043D1 8 18 8
CU0708D2 55 75 12
CU0340D0 28 43 10
CU0404D0 32 48 10
CU1363D2 150 170 15
CU1165D1 110 130 15
CU2774D0 280 310 22
CU1725D0 270 300 24
CU1882D1 818 850 24
CU1899D0 1220 1280 30
UPH13015010NOK 130 150 10
CU2349D0 160 185 19
CU0990D0 85 105 15
CU2132D1 92 112 15
CU0989D1 85 105 12
CU0221DO 20 33 10
CU2007D0 400 430 25
CU2166D0 280 312 24
CU0884D1 71 91 12
CU1332D2 140 165 19
CU1625D0 225 250 18
CU0683D0 53 73 12
CU0948D1 80 100 12
CU0458D0 35.5 51.5 12
CU0639D3 50 70 12
CU0635D0 50 66 12
CU3313D0 18.5 31.5 10
CU2162D0 380 420 30
CU1448D1 170 195 15
CU3331D0 215 240 19
CU1868D0 600 640 30
CU2191DO 1560 1600 20
CU0578D0 45 60 12
CU1042D1 92 112 12
CU2926D0 224 249 19
CU2284D0 640 685 25
CU0093D0 12 25 8
CU1031D0 90 110 15
CU0728D1 56 76 12
CU2348D0 145 170 19
CU1892D0 950 980 20
CU0514D0 40 60 12
CU1895D0 1025 1055 15
CU1714D0 265 297 24
CU0135D0 15 25 8
CU1801D0 355 385 22
CU1786D0 330 355 16
CU0631D2 50 65 10
CU0791D0 63 79 12
CU1878D0 768 800 30
CU3324D0 165 190 19
CU0335D0 28 41 10
CU1030D3 90 110 12
CU3326D0 175 200 15.7
CU1579D0 210 235 18
CU1894D0 1020 1050 18
CU1904D0 1620 1680 30
CU0591D0 47 63 12
CU1850D0 460 500 20
CU2190D0 570 600 17
CU0330D2 28 40 10
CU0437D4 35 50 10
CU3325D0 170 195 19
