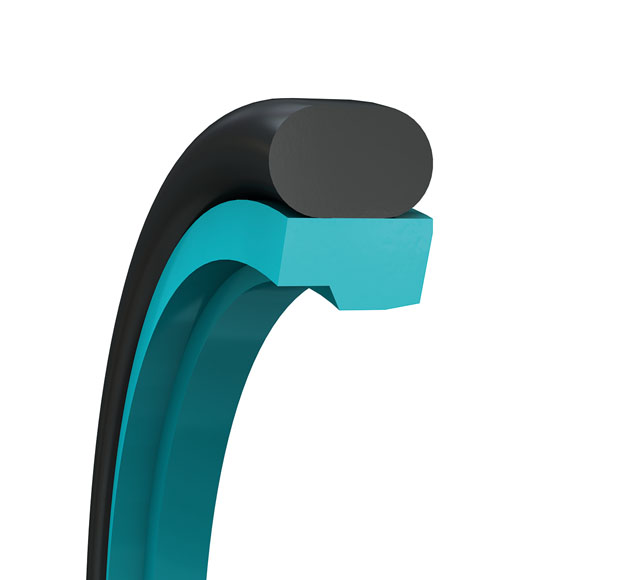

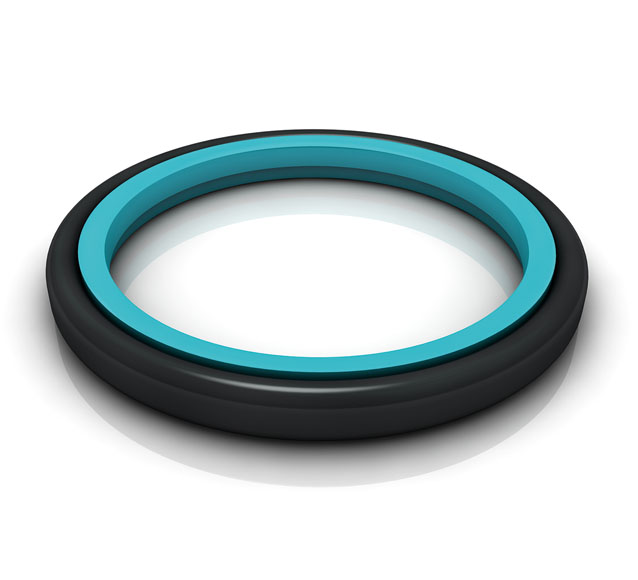

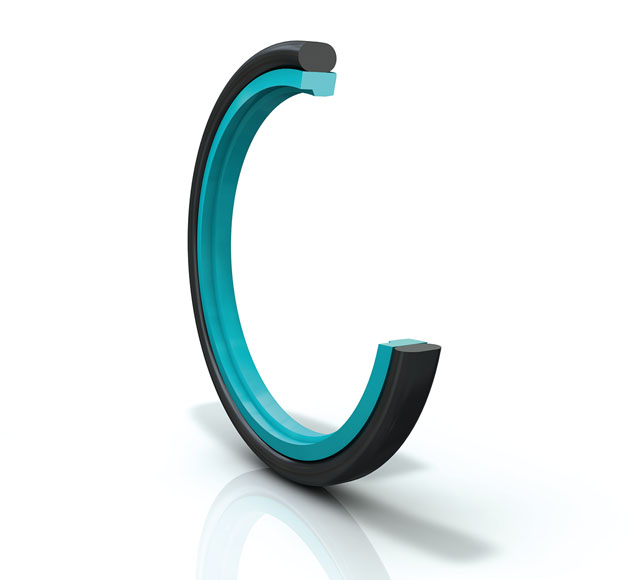

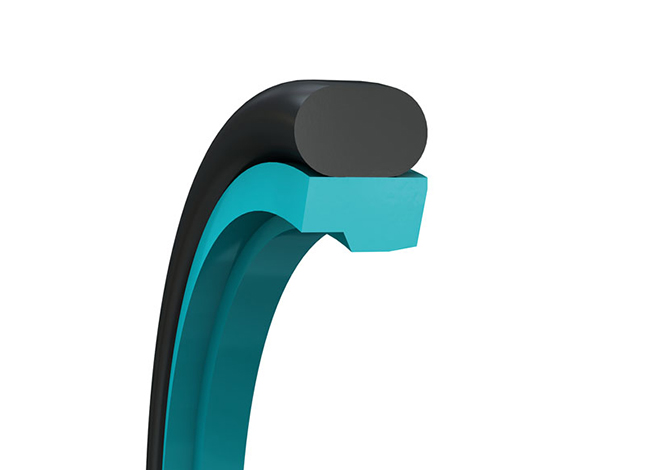

zurcon® rimseal

The Zurcon® Rimseal was developed as the secondary seal in this system to ensure reliable sealing of thin oil films at low secondary pressures

Màu sắc
: Đen
Vật liệu cơ bản
: NBR

Mô tả thương mại

The Zurcon® Rimseal was developed as the secondary seal in this system to ensure reliable sealing of thin oil films at low secondary pressures. A Zurcon® material (polyurethane Shore D 58) is used combined with a new seal profile. The contact pressure curve is automatically optimized under dynamic conditions. The final outer element of the redundant sealing system is a double-acting scraper seal (e.g. DA24, DA 22, Turcon® Excluder® 2). The optimum sealing system thus consists of three independent lip seals installed in line, whereby the hardness of the material decreases from the pressure side to the atmospheric side

Cài đặt và xử lý

When the field of application and system requirements make high demands on leakage control and operational reliability, a redundant sealing system is necessary to ensure reliable sealing of hydraulic cylinders at the piston rod. Sealing systems with elastomer-energized polymer seals are a proven answer to widely varying demands for standardized grooves, simple installation, resistance to media, high and low temperatures and pressures.

The system offers enormous flexibility in the choice and matching of materials. The piston rod sealing system for hydraulic cylinders subject to heavy loads should consist of three elements: The Turcon® Stepseal® 2K or V used as primary seal. This seal element offers the back pumping property necessary for redundant rod seal systems as well as good resistance to high and low temperatures and high media resistance.

The Zurcon® Rimseal was developed as the secondary seal in this system to ensure reliable sealing of thin oil films at low secondary pressures. A Zurcon® material (polyurethane Shore D 58) is used combined with a new seal profile. The contact pressure curve is automatically optimized under dynamic conditions. The final outer element of the redundant sealing system is a double-acting scraper seal (e.g. DA24, DA 22, Turcon® Excluder® 2). The optimum sealing system thus consists of three independent lip seals installed in line, whereby the hardness of the material decreases from the pressure side to the atmospheric side.

Kích thước lắp đặt

Thuộc tính vật liệu

  • Pressure : In tandem system : Up to 60 MPa
  • As an individual element : 25 MPa
  • Speed : 5 m/s with short strokes (<1 m) in tandem system
  • Temperature : -45 °C to +110 °C (depending on O-Ring material)
  • Media : Hydraulic fluids, Mineral oil, Synthetic and natural esters, HEES. HETG up to +60°C, Flame retardant fluids HFA, HFC
  • Clearance : The maximum permissible radial clearance Smax. is shown in the table on the next page as a function of the operating pressure and functional diameter.

Khả năng niêm phong

  • High static and dynamic leak tightness
  • Low friction for reduced power loss
  • High wear resistance for long service life
  • Small groove
  • Easy installation
  • Optimum system element
  • ISO/DIN grooves optional
  • Available a range of diameters from 10 to 250 mm
Part No. ID OD H1 H2 Số lượng Chọn
RR1500800-Z54N 80.0 90.7 4.2
RR1500630-Z54N 63.0 73.7 4.2
RR1500600-Z54N 60.0 70.7 4.2
RR1500550-Z54N 55.0 65.7 4.2
RR1500450-Z54N 45.0 55.7 4.2
RR1500400-Z54N 40.0 50.7 4.2
RR1500360-Z54N 36.0 43.3 3.2
RR1500350-Z54N 35.0 42.3 3.2
RR1500320-Z54N 32.0 39.3 3.2
RR1500300-Z54N 30.0 37.3 3.2
RR1500280-Z54N 28.0 35.3 3.2
RR1500250-Z54N 25.0 32.3 3.2
RR1500220-Z54N 22.0 29.3 3.2
RR1500200-Z54N 20.0 27.3 3.2
RR1307000-Z54N 700.0 727.3 9.5
RR1306400-Z54N 640.0 664.0 8.1
RR1306000-Z54N 600.0 624.0 8.1
RR1305000-Z54N 500.0 524.0 8.1
RR1304800-Z54N 480.0 504.0 8.1
RR1304500-Z54N 450.0 474.0 8.1
RR1304200-Z54N 420.0 444.0 8.1
RR1304000-Z54N 400.0 424.0 8.1
RR1303800-Z54N 380.0 404.0 8.1
RR1303600-Z54N 360.0 384.0 8.1
RR1303500-Z54N 350.0 374.0 8.1
RR1303400-Z54N 340.0 364.0 8.1
RR1303200-Z54N 320.0 344.0 8.1
RR1303100-Z54N 310.0 334.0 8.1
RR1302800-Z54N 280.0 304.0 8.1
RR1302500-Z54N 250.0 270.5 8.1
RR1302400-Z54N 240.0 260.5 8.1
RR1302300-Z54N 230.0 250.5 8.1
RR1302250-Z54N 225.0 245.5 8.1
RR1302200-Z54N 220.0 240.5 8.1
RR1302100-Z54N 210.0 230.5 8.1
RR1302000-Z54N 200.0 220.5 8.1
RR1301900-Z54N 190.0 205.1 6.3
RR1301850-Z54N 185.0 200.1 6.3
RR1301800-Z54N 180.0 195.1 6.3
RR1301750-Z54N 175.0 190.1 6.3
RR1301700-Z54N 170.0 185.1 6.3
RR1301650-Z54N 165.0 180.1 6.3
RR1301600-Z54N 160.0 175.1 6.3
RR1301550-Z54N 155.0 170.1 6.3
RR1301500-Z54N 150.0 165.1 6.3
RR1301400-Z54N 140.0 155.1 6.3
RR1301350-Z54N 135.0 150.1 6.3
RR1301300-Z54N 130.0 145.1 6.3
RR1301250-Z54N 125.0 140.1 6.3
RR1301200-Z54N 120.0 135.1 6.3
RR1301100-Z54N 110.0 125.1 6.3
RR1301050-Z54N 105.0 120.1 6.3
RR1301000-Z54N 100.0 115.1 6.3
RR1300950-Z54N 95.0 110.1 6.3
RR1300900-Z54N 90.0 105.1 6.3
RR1300850-Z54N 85.0 100.1 6.3
RR1300800-Z54N 80.0 95.1 6.3
RR1300750-Z54N 75.0 90.1 6.3
RR1300700-Z54N 70.0 85.1 6.3
RR1300650-Z54N 65.0 80.1 6.3
RR1300630-Z54N 63.0 78.1 6.3
RR1300600-Z54N 60.0 75.1 6.3
RR1300560-Z54N 56.0 71.1 6.3
RR1300550-Z54N 55.0 70.1 6.3
RR1300520-Z54N 52.0 67.1 6.3
RR1300500-Z54N 50.0 65.1 6.3
RR1300480-Z54N 48.0 63.1 6.3
RR1300450-Z54N 45.0 60.1 6.3
RR1300420-Z54N 42.0 57.1 6.3
RR1300400-Z54N 40.0 55.1 6.3
RR1300360-Z54N 36.0 46.7 4.2
RR1300350-Z54N 35.0 45.7 4.2
RR1300320-Z54N 32.0 42.7 4.2
RR1300300-Z54N 30.0 40.7 4.2
RR1300280-Z54N 28.0 38.7 4.2
RR1300250-Z54N 25.0 35.7 4.2
RR1300220-Z54N 22.0 32.7 4.2
RR1300200-Z54N 20.0 30.7 4.2
RR1300180-Z54N 18.0 25.3 3.2
RR1300160-Z54N 16.0 23.3 3.2
RR1300150-Z54N 15.0 22.3 3.2
RR1300140-Z54N 14.0 21.3 3.2
RR1300120-Z54N 12.0 19.3 3.2
RR1300100-Z54N 10.0 17.3 3.2
RR1101800-Z54N 180.0 200.5 8.1
RR1101600-Z54N 160.0 180.5 8.1
RR1101500-Z54N 150.0 170.5 8.1
RR1101250-Z54N 125.0 145.5 8.1
RR1101100-Z54N 110.0 130.5 8.1
