Merkel Guide Strip SF

Installation & Handling

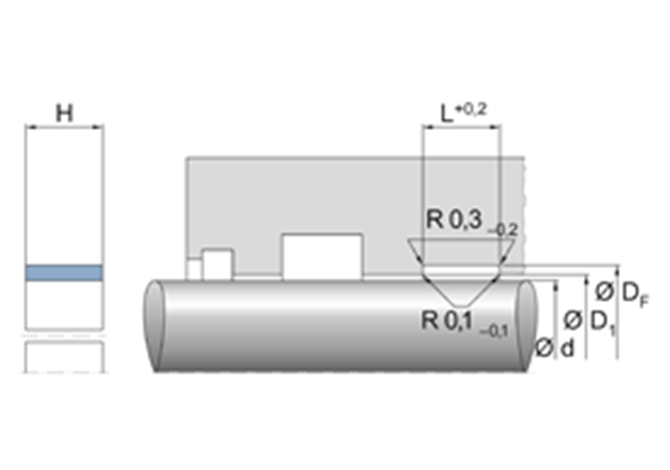

Installation dimensions

Material Properties

Seal Capabilities

Part No. ID OD H1 H2 Quantity Pick
24357284 1150 1158 24.5 25
24296554 1050 1058 24.5 25
24361413 975 983 24.5 25
24233242 950 958 24.5 25
24257241 900 908 24.5 25
24263885 890 898 24.5 25
24263607 890 898 14.8 15
24314615 850 858 24.5 25
24344381 830 838 24.5 25
24238051 820 828 19.5 20
24295216 800 808 24.5 25
24162994 800 805 24.5 25
24351827 790 798 24.5 25
24331521 787.4 795.4 24.5 25
24227972 750 755 24.5 25
24243175 740 748 24.5 25
24344397 740 748 19.5 20
24163718 735 740 24.5 25
24263632 730 738 24.5 25
24249366 723.9 731.9 19.5 20
24359660 720 728 24.5 25
24216172 710 718 14.8 15
24262945 700 708 29.5 30
24223046 700 705 24.5 25
24234909 700 705 14.8 15
24261537 675 680 24.5 25
24361116 670 678 24.5 25
24162996 670 675 24.5 25
24293967 650 658 24.5 25
24298429 640 648 24.5 25
24263904 630 635 24.5 25
24361332 630 635 19.5 20
24354129 620 625 24.5 25
24291416 620 625 19.5 20
24354936 600 608 24.5 25
24300403 600 605 19.5 20
24316132 600 605 14.8 15
24236371 596.9 604.9 29.5 30
24290939 590 595 24.5 25
24307426 580 588 24.5 25
24263227 570 575 24.5 25
24274998 560 568 24.5 25
24344262 550 555 24.5 25
24332687 540 548 24.5 25
24358194 540 545 24.5 25
24242786 520 525 19.5 20
24269186 510 515 24.5 25
24269420 500 508 24.5 25
24360925 500 508 19.5 20
24263467 500 505 24.5 25
24264832 500 505 14.8 15
24366903 490 495 14.8 15
24337938 480 488 24.5 25
24261536 480 485 24.5 25
24261562 475 480 24.5 25
24274936 470 478 24.5 25
24347036 470 475 24.5 25
24361808 463.6 471.6 24.5 25
24269409 460 468 24.5 25
24308715 460 465 24.5 25
24294991 450 458 24.5 25
24257338 450 455 24.5 25
24265878 450 455 14.8 15
24344261 440 445 24.5 25
24162988 435 440 24.5 25
24362369 431.8 439.8 24.5 25
24348071 430 435 24.5 25
24203171 430 435 19.5 20
24261535 425 430 24.5 25
24269684 420 428 24.5 25
24233817 420 425 24,5 25
24230161 420 425 19.5 20
24296901 410 415 24.5 25
49045103 410 415 14.8 15
24269425 400 408 24.5 25
24274959 400 405 14.8 15
24355839 390 398 24.5 25
24336658 390 395 24.5 25
24350238 390 395 14.8 15
24342011 360 368 24.5 25
24300177 360 365 14.8 15
24337998 350 358 24.5 25
24300176 350 355 24.5 25
24300175 350 355 14.8 15
24301095 343 348 14.8 15
24162997 340 345 24,5 25
24300174 340 345 14.8 15
24300173 330 335 24.5 25
24300172 330 335 14.8 15
24293821 325 330 24.5 25
24300169 310 315 14.8 15
24348072 300 305 24.5 25
24300168 300 305 14.8 15
24300167 290 295 14.8 15
24300166 280 285 14.8 15
24262561 270 275 24.5 25
24300164 260 265 14.8 15
24300163 250 255 14.8 15
24311377 245 250 24.5 25
24314554 240 245 24.5 25
24223045 240 245 14.8 15
24258216 240 245 9.6 9.7
24342108 230 235 19.5 20
24154716 230 235 14.8 15
24157304 220 225 19.5 20
24300162 220 225 14.8 15
24300161 220 225 9.6 9.7
24239042 210 215 19.5 20
24300160 210 215 14.8 15
24300159 210 215 9.6 9.7
24299021 200 208 24.5 25
24266925 200 205 24.5 25
24154721 200 205 14.8 15
24242182 195 200 9.6 9.7
24300157 190 195 14.8 15
24291724 185 190 9.6 9.7
24300155 180 185 14.8 15
24300154 180 185 9.6 9.7
24264758 175 180 24.5 25
24300153 170 175 14.8 15
24263903 160 165 24.5 25
24204055 160 165 14.8 15
24204644 160 165 9.6 9.7
24168884 150 155 24.5 25
24203276 150 155 19.5 20
24300151 150 155 14.8 15
24248043 145 150 9.6 9.7
24327236 140 148 14.8 15
24256885 140 145 24.5 25
24328413 140 145 19.5 20
24300149 140 145 14.8 15
24300146 135 140 9.6 9.7
24262562 130 135 24.5 25
24300144 130 135 14.8 15
24300143 130 135 9.6 9.7
24230162 125 130 19.5 20
24300141 125 130 14.8 15
24300140 125 130 9.6 9.7
24300138 120 125 14.8 15
24300137 120 125 9.6 9.7
24242172 115 120 19.5 20
24300135 115 120 9.6 9.7
24327234 110 118 14.8 15
24292915 110 115 24.5 25
24166931 110 115 19.5 20
24293684 110 115 14.8 15
24300133 110 115 9.6 9.7
24300131 105 110 9.6 9.7
24327233 100 108 14.8 15
24342265 100 105 24.5 25
24260605 100 105 19.5 20
24250627 100 105 14.8 15
24300129 100 105 9.6 9.7
24300127 95 100 9.6 9.7
24291194 90 95 14.8 15
24300125 90 95 9.6 9.7
24244741 85 90 14.8 15
24167352 85 90 9.6 9.7
24265250 80 85 24.5 25
24266958 80 85 14.8 15
24300122 80 85 9.6 9.7
24244742 75 80 14.8 15
24300120 75 80 9.6 9.7
24300118 70 75 9.6 9.7
24332153 68 73 9.6 9.7
24300116 65 70 9.6 9.7
24275191 63 68 14.8 15
24300114 63 68 9.6 9.7
24203612 60 65 14.8 15
24165598 60 65 9.6 9.7
24333829 58 63 9.6 9.7
24316593 56 61 14.8 15
24245671 56 61 9.6 9.7
24300111 56 61 5.5 5.6
24275190 55 60 14.8 15
24160646 55 60 9.6 9.7
24203345 50 55 14.8 15
24169558 50 55 9.6 9.7
24110082 50 55 5.5 5.6
24311361 45 50 14.8 15
24266350 45 50 9.6 9.7
24300110 45 50 5.5 5.6
24333828 44 49 9.6 9.7
24300109 42 47 5.5 5.6
24216883 40 45 9.6 9.7
24165260 36 41 5.5 5.6
24300105 35 38 5.5 5.6
24294062 32 37 9.6 9.7
24300102 28 31 5.5 5.6
24300101 25 28 5.5 5.6
