Part No.
Installation dimensions
  • Inside Diameter ID
    mm
  • Outside Diameter OD
    mm
  • Groove section H1
    mm
  • Groove Width H2
    mm

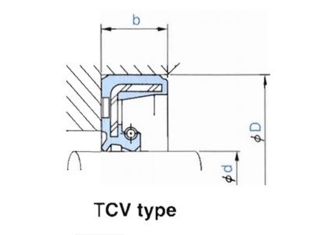

TCV Type

Installation & Handling

Installation dimensions

Material Properties

Seal Capabilities

Part No. ID OD H1 H2 Quantity Pick
AP1904G0 32 52 11
AP1338G4 25 45 11
AP3154E0 58 80 12
UP0815E 25.15 53.98 7
BP0105F0 22 36 7
AP1148E0 22 42 11
AR0279G1 10 25 7
AP3055G0 55 78 12
AP8540E0 31.75 44.5 9.9
AP8907I0 24 36 7
AP1033H3 20 40 11
AP1314H0 25 40 8
AP1841E0 31.75 50.8 11.1
AP0751E1 17 32 8
AP2507G0 42 65 12
AP3204G0 60 78 9
AP3193E0 60 75 9
AP0816F0 18 30 7
BP1315F0 31.75 44.45 6.35
AP1474F0 26 42 8
AP0279E0 10 25 7
AP0687F0 16 30 7
AP8725E0 24.61 53.98 7
AP2240A0 38 58 11
AP1224E0 23 42 11
AP0478E0 13 28 7
AP0745F0 17 30 8
AP0760E0 17 35 8
AP3222G0 60 82 12
AP2864A0 50 72 12
AP0382E0 12 25 7
AP2864J0 50 72 12
AP0875E0 19 35 8
AP1709G3 30 50 11
AP6826E0 22.15 38.02 8
AP2388F2 40 62 11
AP1665E0 30 42 7
AP1127E0 22 35 8
AP2085A0 35 55 11
AP1935E0 33 50 11
AP1666J00X9 30 42 8
AP1306F0 25 38 7
AP0743E0 17 30 7
AP2668H0 45 68 12
AP0145E0 8 18 7
AP2388A0 40 62 11
AP2240H2 38 58 11
AP1563I2 28 48 11
AP7926G0 25.4 41.2 6.4
AP2847I0 50 68 9
AP0598F3 15 30 7
AP1260E0 24 40 8
AP0787E0 17.46 30.15 8
AP2967F0 52 75 12
AP7019E0 32 52 9
AP1978F0 34 54 11
AP2085H2 35 55 11
AP0598A0 15 30 7
AP0090E0 7 20 7
AP8090 25 50 12
AP1033A0 20 40 11
AP2775G0 48 62 9
AP0526F0 14 28 7
AP0997E0 20 32 8
AP1563K0 28 48 11
BP1513E 29 47 9
AP1518F0 27 47 11
AP3297F0 62 85 12
BPP173A0 29.36 42.82 7.9
AP1012J0 20 35 7
AP1338A0 25 45 11
AP0158F0 8 22 7
AP2791F0 48 70 12
AP2668A0 45 68 12
AP0829E0 18 35 8
