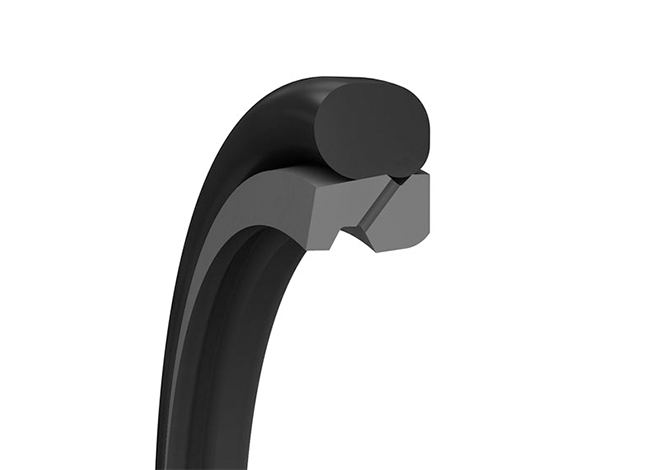

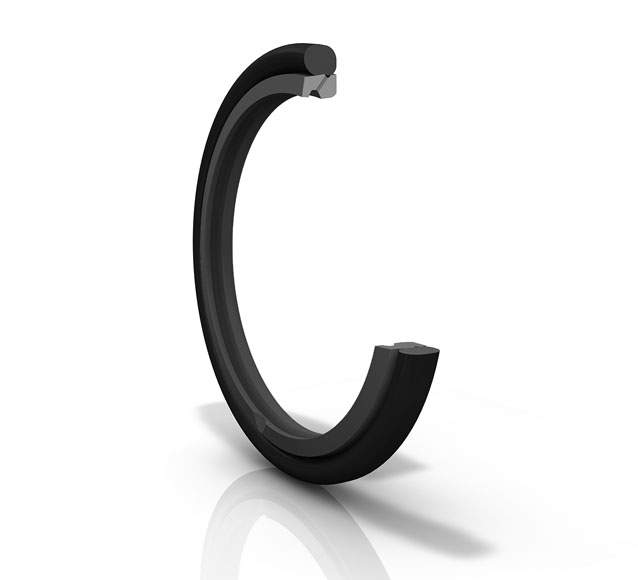

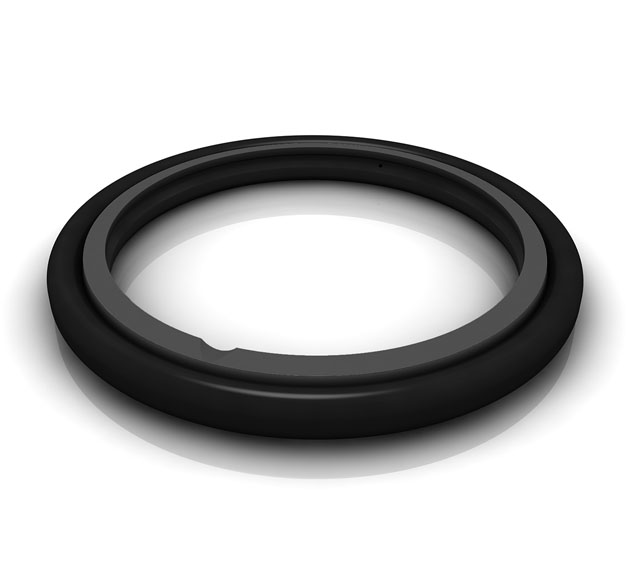

TURCON® STEPSEAL® V

Stepseal® V is based on the dynamic, unidirectional Stepseal® sealing concept.

Colour
: Dark Grey
Basic Material
: PTFE
Hardness
: 55

Commercial Description

Stepseal® V is based on the dynamic, unidirectional Stepseal® sealing concept. During the extending stroke of the rod, focusing of contact force on the unique Stepseal® sealing edge creates high local sealing pressure and limits the micro fluid film formation under the seal. When the rod is retracted, the design of the full Stepseal® sealing face supports hydrodynamic back-pumping of the fluid film, and so ensures leak-free sealing efficiency with low friction and long service life.

Installation & Handling

In long-stroke cylinders, and equipment operating with low speed during retraction, it has been found that hydrodynamic back-pumping may become insufficient to prevent build-up of pressure in the seal system behind the primary seal. Pressure build-up in the seal system leads to leakage, increased friction and wear, and may ultimately require replacement of the seals. The usual precaution in such equipment has been to provide space for a buffer volume behind the primary seal, or to install a drain line. The built-in check valve function is used to eliminate pressure build-up and so render buffer volumes and drain lines obsolete. Extensive development has now brought the inherent prevention of pressure build-up together with dependable sealing performance in one element; Turcon® Stepseal® V. Stepseal® V has the efficient seal performance and outstanding service life of the Stepseal® range, and the reliable prevention of pressure build-up brought by a refined check valve function.

Installation dimensions

Material Properties

  • Pressure : Up to 50 MPa (Turcon® M12)
  • Speed : Up to 15 m/s with reciprocating movements, frequency up to 15 Hz
  • Temperature : -30 °C to +200 °C (depending on seal and O-Ring material)
  • Media : Mineral oil based hydraulic fluids, flame retardant hydraulic fluids, environmentally safe hydraulic fluids (plant based oils), phosphate ester and others, depending on the seal and O-Ring material
  • Clearance : The maximum permissible radial clearance Smax. is shown in the table on the next page as a function of the operating pressure and functional diameter.

Seal Capabilities

  • Same basic function as Turcon® Stepseal® 2K
  • Check valve function of O-Ring eliminates risk of fluid bypassing the seal during pressure loading when pressurized
  • No system pressure on secondary sealing element and/ or Excluder®
  • Independent of any speed relation of counter surface
  • Independent of stroke length and deflection
  • Minimum contribution of friction of secondary sealing element and/or Excluder®
  • Minimum wear of secondary sealing element and/or Excluder®
  • Increased leakage control
  • Prolonged seal life Increased operational reliability
  • Fits standard Turcon® Stepseal® 2K groove dimensions as well as ISO 7425 seal housings
Part No. ID OD H1 H2 Quantity Pick
RSV402500-T46N 250.0 270.5 8.1
RSV402500-M12V 250.0 270.5 8.1
RSV402500-M12N 250.0 270.5 8.1
RSV402450-M12V 245.0 265.5 8.1
RSV402450-M12N 245.0 265.5 8.1
RSV402400-M12V 240.0 260.5 8.1
RSV402400-M12N 240.0 260.5 8.1
RSV402350-M12V 235.0 255.5 8.1
RSV402350-M12N 235.0 255.5 8.1
RSV402300-M12V 230.0 250.5 8.1
RSV402300-M12N 230.0 250.5 8.1
RSV402250-M12V 225.0 245.5 8.1
RSV402250-M12N 225.0 245.5 8.1
RSV402200-T46N 220.0 240.5 8.1
RSV402200-M12V 220.0 240.5 8.1
RSV402200-M12N 220.0 240.5 8.1
RSV402150-M12V 215.0 235.5 8.1
RSV402150-M12N 215.0 235.5 8.1
RSV402120-M12V 212.0 232.5 8.1
RSV402120-M12N 212.0 232.5 8.1
RSV402110-M12V 211.0 231.5 8.1
RSV402110-M12N 211.0 231.5 8.1
RSV402100-M12V 210.0 230.5 8.1
RSV402100-M12N 210.0 230.5 8.1
RSV402050-M12V 205.0 225.5 8.1
RSV402050-M12N 205.0 225.5 8.1
RSV402000-T46N 200.0 220.5 8.1
RSV402000-M12V 200.0 220.5 8.1
RSV402000-M12N 200.0 220.5 8.1
RSV301950-M12V 195.0 210.1 6.3
RSV301950-M12N 195.0 210.1 6.3
RSV301900-M12V 190.0 205.1 6.3
RSV301900-M12N 190.0 205.1 6.3
RSV301850-M12V 185.0 200.1 6.3
RSV301850-M12N 185.0 200.1 6.3
RSV301800-T46V 180.0 195.1 6.3
RSV301800-T46N 180.0 195.1 6.3
RSV301800-M12V 180.0 195.1 6.3
RSV301800-M12N 180.0 195.1 6.3
RSV301750-M12V 175.0 190.1 6.3
RSV301750-M12N 175.0 190.1 6.3
RSV301730-M12V 173.0 188.1 6.3
RSV301730-M12N 173.0 188.1 6.3
RSV301700-T46N 170.0 185.1 6.3
RSV301700-M12V 170.0 185.1 6.3
RSV301700-M12N 170.0 185.1 6.3
RSV301650-M12V 165.0 180.1 6.3
RSV301650-M12N 165.0 180.1 6.3
RSV301600-T46V 160.0 175.1 6.3
RSV301600-T46N 160.0 175.1 6.3
RSV301600-M12V 160.0 175.1 6.3
RSV301600-M12N 160.0 175.1 6.3
RSV301550-T46V 155.0 170.1 6.3
RSV301550-M12V 155.0 170.1 6.3
RSV301550-M12N 155.0 170.1 6.3
RSV301530-M12V 153.0 168.1 6.3
RSV301530-M12N 153.0 168.1 6.3
RSV301500-T46V 150.0 165.1 6.3
RSV301500-T46N 150.0 165.1 6.3
RSV301500-M12V 150.0 165.1 6.3
RSV301500-M12N 150.0 165.1 6.3
RSV301450-M12V 145.0 160.1 6.3
RSV301450-M12N 145.0 160.1 6.3
RSV301405-M12V 140.5 155.6 6.3
RSV301405-M12N 140.5 155.6 6.3
RSV301400-T46V 140.0 155.1 6.3
RSV301400-T46N 140.0 155.1 6.3
RSV301400-M12V 140.0 155.1 6.3
RSV301400-M12N 140.0 155.1 6.3
RSV301380-M12V 138.0 153.1 6.3
RSV301380-M12N 138.0 153.1 6.3
RSV301370-M12V 137.0 152.1 6.3
RSV301370-M12N 137.0 152.1 6.3
RSV301350-M12V 135.0 150.1 6.3
RSV301350-M12N 135.0 150.1 6.3
RSV301320-M12V 132.0 147.1 6.3
RSV301320-M12N 132.0 147.1 6.3
RSV301300-M12V 130.0 145.1 6.3
RSV301300-M12N 130.0 145.1 6.3
RSV301270-M12V 127.0 142.1 6.3
RSV301270-M12N 127.0 142.1 6.3
RSV301254-M12V 125.4 140.5 6.3
RSV301254-M12N 125.4 140.5 6.3
RSV301250-T46N 125.0 140.1 6.3
RSV301250-M12V 125.0 140.1 6.3
RSV301250-M12N 125.0 140.1 6.3
RSV301200-T46N 120.0 135.1 6.3
RSV301200-M12V 120.0 135.1 6.3
RSV301200-M12N 120.0 135.1 6.3
RSV301150-T46V 115.0 130.1 6.3
RSV301150-M12V 115.0 130.1 6.3
RSV301150-M12N 115.0 130.1 6.3
RSV301100-T46V 110.0 125.1 6.3
RSV301100-T46N 110.0 125.1 6.3
RSV301100-M12V 110.0 125.1 6.3
RSV301100-M12N 110.0 125.1 6.3
RSV301050-M12V 105.0 120.1 6.3
RSV301050-M12N 105.0 120.1 6.3
RSV301047-M12V 104.7 119.8 6.3
RSV301047-M12N 104.7 119.8 6.3
RSV301016-M12V 101.6 116.7 6.3
RSV301016-M12N 101.6 116.7 6.3
RSV301000-T46V 100.0 115.1 6.3
RSV301000-T46N 100.0 115.1 6.3
RSV301000-M12V 100.0 115.1 6.3
RSV301000-M12N 100.0 115.1 6.3
RSV300950-M12V 95.0 110.1 6.3
RSV300950-M12N 95.0 110.1 6.3
RSV300920-M12V 92.0 107.1 6.3
RSV300920-M12N 92.0 107.1 6.3
RSV300900-T46V 90.0 105.1 6.3
RSV300900-T46N 90.0 105.1 6.3
RSV300900-M12V 90.0 105.1 6.3
RSV300900-M12N 90.0 105.1 6.3
RSV300890-M12V 89.0 104.1 6.3
RSV300890-M12N 89.0 104.1 6.3
RSV300850-M12V 85.0 100.1 6.3
RSV300850-M12N 85.0 100.1 6.3
RSV300825-M12V 82.5 97.6 6.3
RSV300825-M12N 82.5 97.6 6.3
RSV300800-T46V 80.0 95.1 6.3
RSV300800-T46N 80.0 95.1 6.3
RSV300800-M12V 80.0 95.1 6.3
RSV300800-M12N 80.0 95.1 6.3
RSV300780-M12V 78.0 93.1 6.3
RSV300780-M12N 78.0 93.1 6.3
RSV300762-M12V 76.2 91.3 6.3
RSV300762-M12N 76.2 91.3 6.3
RSV300750-T46N 75.0 90.1 6.3
RSV300750-M12V 75.0 90.1 6.3
RSV300750-M12N 75.0 90.1 6.3
RSV300730-M12V 73.0 88.1 6.3
RSV300730-M12N 73.0 88.1 6.3
RSV300700-T46V 70.0 85.1 6.3
RSV300700-T46N 70.0 85.1 6.3
RSV300700-M12V 70.0 85.1 6.3
RSV300700-M12N 70.0 85.1 6.3
RSV300690-M12V 69.0 84.1 6.3
RSV300690-M12N 69.0 84.1 6.3
RSV300650-M12V 65.0 80.1 6.3
RSV300650-M12N 65.0 80.1 6.3
RSV300635-M12V 63.5 78.6 6.3
RSV300635-M12N 63.5 78.6 6.3
RSV300630-T46N 63.0 78.1 6.3
RSV300630-M12V 63.0 78.1 6.3
RSV300630-M12N 63.0 78.1 6.3
RSV300600-M12V 60.0 75.1 6.3
RSV300600-M12N 60.0 75.1 6.3
RSV300570-M12V 57.0 72.1 6.3
RSV300570-M12N 57.0 72.1 6.3
RSV300560-T46N 56.0 71.1 6.3
RSV300560-M12V 56.0 71.1 6.3
RSV300560-M12N 56.0 71.1 6.3
RSV300550-M12V 55.0 70.1 6.3
RSV300550-M12N 55.0 70.1 6.3
RSV300540-M12V 54.0 69.1 6.3
RSV300540-M12N 54.0 69.1 6.3
RSV300520-M12V 52.0 67.1 6.3
RSV300520-M12N 52.0 67.1 6.3
RSV300508-M12V 50.8 65.9 6.3
RSV300508-M12N 50.8 65.9 6.3
RSV300500-T46N 50.0 65.1 6.3
RSV300500-M12V 50.0 65.1 6.3
RSV300500-M12N 50.0 65.1 6.3
RSV300480-M12V 48.0 63.1 6.3
RSV300480-M12N 48.0 63.1 6.3
RSV300450-T46N 45.0 60.1 6.3
RSV300450-M12V 45.0 60.1 6.3
RSV300450-M12N 45.0 60.1 6.3
RSV300444-M12V 44.45 59.5 6.3
RSV300444-M12N 44.45 59.5 6.3
RSV300420-M12V 42.0 57.1 6.3
RSV300420-M12N 42.0 57.1 6.3
RSV300400-T46N 40.0 55.1 6.3
RSV300400-M12V 40.0 55.1 6.3
RSV300400-M12N 40.0 55.1 6.3
RSV300380-M12V 38.0 53.1 6.3
RSV300380-M12N 38.0 53.1 6.3
RSV200370-M12V 37.0 47.7 4.2
RSV200370-M12N 37.0 47.7 4.2
RSV200360-T46N 36.0 46.7 4.2
RSV200360-M12V 36.0 46.7 4.2
RSV200360-M12N 36.0 46.7 4.2
RSV200350-T46N 35.0 45.7 4.2
RSV200350-M12V 35.0 45.7 4.2
RSV200350-M12N 35.0 45.7 4.2
RSV200320-M12V 32.0 42.7 4.2
RSV200320-M12N 32.0 42.7 4.2
RSV200300-M12V 30.0 40.7 4.2
RSV200300-M12N 30.0 40.7 4.2
RSV200280-M12V 28.0 38.7 4.2
RSV200280-M12N 28.0 38.7 4.2
RSV200260-M12V 26.0 36.7 4.2
RSV200260-M12N 26.0 36.7 4.2
RSV200254-M12V 25.4 36.1 4.2
RSV200254-M12N 25.4 36.1 4.2
RSV200250-M12V 25.0 35.7 4.2
RSV200250-M12N 25.0 35.7 4.2
RSV200220-M12V 22.0 32.7 4.2
RSV200220-M12N 22.0 32.7 4.2
RSV200200-M12V 20.0 30.7 4.2
RSV200200-M12N 20.0 30.7 4.2
RSV200190-M12V 19.0 29.7 4.2
RSV200190-M12N 19.0 29.7 4.2
RSV200150-M12V 15.0 25.7 4.2
RSV200150-M12N 15.0 25.7 4.2
RSV200120-M12V 12.0 22.7 4.2
RSV200120-M12N 12.0 22.7 4.2
