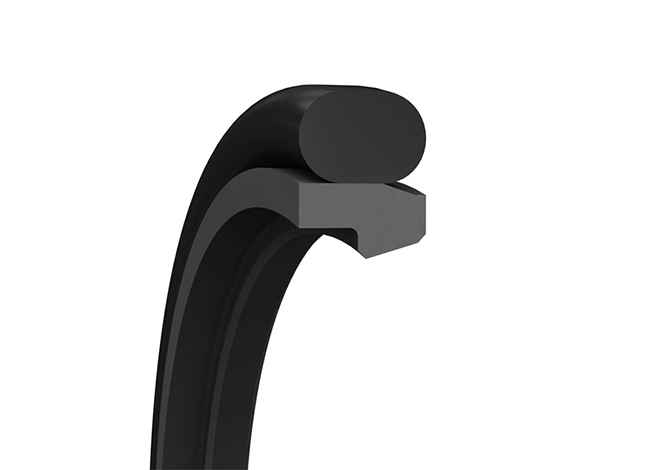

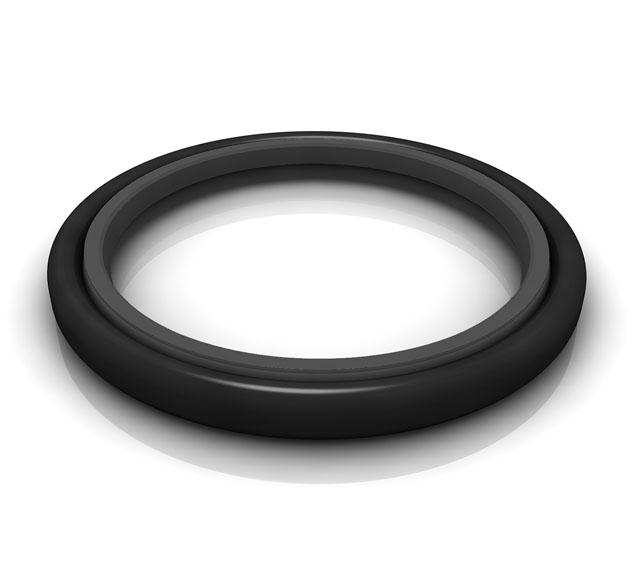

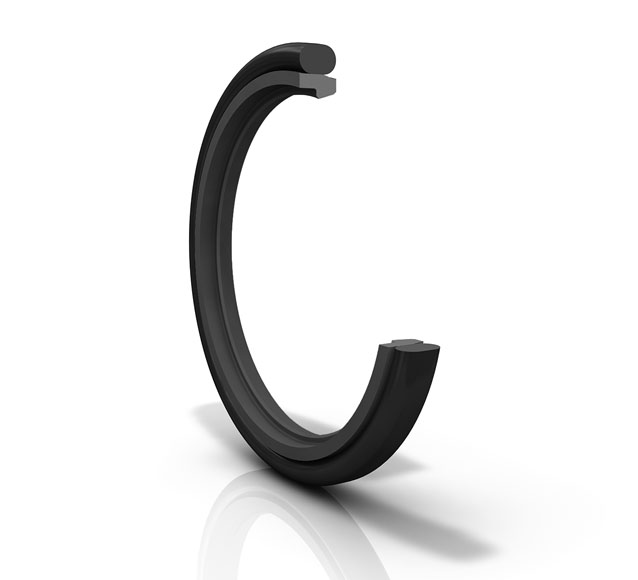

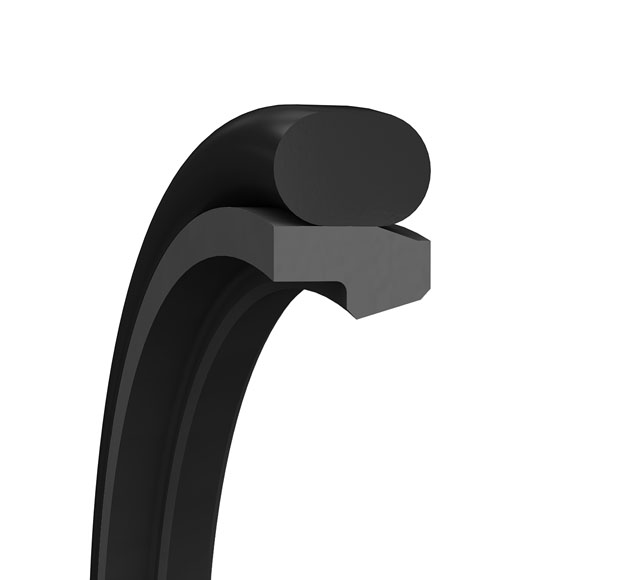

Turcon® Stepseal® 2K

This single-acting O-Ring energized rod seal is made of Turcon® and provides high static and dynamic sealing results

Colour
: Dark Grey
Basic Material
: PTFE
Hardness
: Up to 50 MPa

Commercial Description

This single-acting O-Ring energized rod seal is made of Turcon® and provides high static and dynamic sealing results. Can be installed together with other seals in a tandem configuration for advanced static and dynamic tightness. The Turcon® Stepseal® 2K offers high extrusion resistance, low friction with no stick-slip, minimal break out force and high wear resistance.

Installation & Handling

Rod seals must exhibit no dynamic leakage to the atmosphere side under all operating conditions and must be statically completely leak tight when the machine is at a standstill. Furthermore, they should achieve a high degree of mechanical efficiency through low friction and be easy to install in small grooves. Costs and service life must meet the high expectations of the operator. The rod seal Turcon® Stepseal® 2K comes closest to satisfying these ideal demands. Since the first Stepseal® was patented, Trelleborg Sealing Solutions has maintained the series as technically outstanding through continuous innovation. Turcon® Stepseal® 2K marks the latest development. The introduction of Stepseal® made it possible to arrange several seals in sequence thus allowing statically and dynamically tight double-acting tandem seal configurations to be created while avoiding disturbing build-up of intermediate pressure. The single-acting seal element is made of high-grade Turcon® materials with outstanding sliding and wear resistance properties. It is installed according to ISO 7425-2 and Trelleborg Sealing Solutions standard grooves, using an O-Ring as energizing element.

Installation dimensions

Material Properties

  • Pressure : Up to 50 MPa
  • Speed : Up to 15 m/s with reciprocating movements, frequency up to 5 Hz
  • Temperature : -30 °C to +200 °C (depending on O-Ring material)
  • Media : Mineral oil-based hydraulic fluids, flame retardant hydraulic fluids environmentally safe hydraulic fluids (bio-oils), phosphate ester and others, depending on the O-Ring material compatibility
  • Clearance : The maximum permissible radial clearance Smax. is shown in the table on the next page as a function of the operating pressure and functional diameter.

Seal Capabilities

  • High static and dynamic sealing effect
  • High extrusion resistance, meets high hardware clearances
  • Low friction, high efficiency Stick-slip free starting, no sticking
  • High abrasion resistance, high operational reliability
  • Wide range of application temperatures and high resistance to chemicals, depending on the choice of O-Ring material
  • Simple installation without seal edge deformation
  • Available for all diameters up to 250 mm rod diameter
Part No. ID OD H1 H2 Quantity Pick
RSK000150-M12V 15.0 19.9 2.2 1
RSK000150-M12N 15.0 19.9 2.2 1
RSK000140-T46V 14.0 18.9 2.2 1
RSK000140-T46N 14.0 18.9 2.2 1
RSK000140-M12V 14.0 18.9 2.2 1
RSK000140-M12N 14.0 18.9 2.2 1
RSK000130-T46N 13.0 17.9 2.2 1
RSK000130-M12V 13.0 17.9 2.2 1
RSK000130-M12N 13.0 17.9 2.2 1
RSK000127-T46N 12.7 17.6 2.2 1
RSK000120-T46V 12.0 16.9 2.2 1
RSK000120-T46N 12.0 16.9 2.2 1
RSK000120-M12V 12.0 16.9 2.2 1
RSK000120-M12N 12.0 16.9 2.2 1
RSK000100-T46V 10.0 14.9 2.2 1
RSK000100-T46N 10.0 14.9 2.2 1
RSK000100-M12V 10.0 14.9 2.2 1
RSK000100-M12N 10.0 14.9 2.2 1
RSK000090-T46N 9.0 13.9 2.2 1
RSK000080-T46V 8.0 12.9 2.2 1
RSK000080-T46N 8.0 12.9 2.2 1
RSK000080-M12V 8.0 12.9 2.2 1
RSK000080-M12N 8.0 12.9 2.2 1
RSK000070-T46V 7.0 11.9 2.2 1
RSK000070-T46N 7.0 11.9 2.2 1
RSK000060-T46V 6.0 10.9 2.2 1
RSK000060-T46N 6.0 10.9 2.2 1
RSK000060-M12V 6.0 10.9 2.2 1
RSK000060-M12N 6.0 10.9 2.2 1
RSK000050-T46V 5.0 9.9 2.2 1
RSK000050-T46N 5.0 9.9 2.2 1
RSK000050-M12V 5.0 9.9 2.2 1
RSK000050-M12N 5.0 9.9 2.2 1
RSK000040-T46V 4.0 8.9 2.2 1
RSK000040-T46N 4.0 8.9 2.2 1
RSK000040-M12V 4.0 8.9 2.2 1
RSK000040-M12N 4.0 8.9 2.2 1
RSK000030-T46V 3.0 7.9 2.2 1
RSK000030-T46N 3.0 7.9 2.2 1
RSK000030-M12V 3.0 7.9 2.2 1
RSK000030-M12N 3.0 7.9 2.2 1
