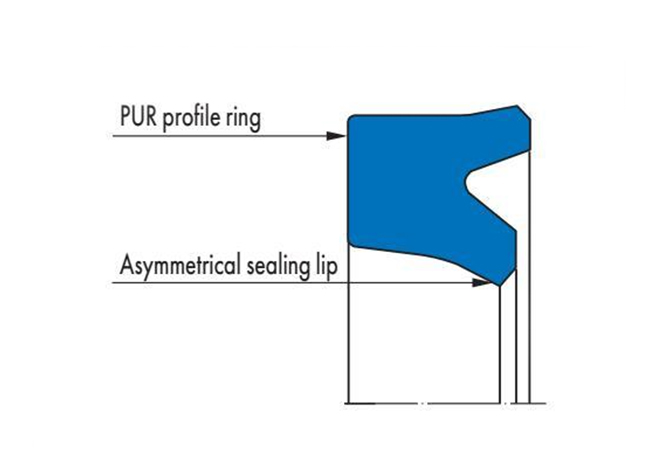

Merkel U-Ring T20

Installation & Handling

Installation dimensions

Material Properties

Seal Capabilities

Download Technical Details (PDF)
Part No. ID OD H1 H2 Quantity Pick
24335042 320 350 17.3 19
24358215 310 340 17.3 19
24361684 306 331 20 22
24366949 304.8 330.2 18.1 19.8
24361028 300 330 21.8 24
24377304 300 330 21.5 23.6
24351902 300 330 17.3 19
24356384 290 320 17.3 19
24223334 280 310 17.3 19
24359724 280 300 15 16.5
24327509 275 305 17.3 19
24360583 270 300 22.5 24
24361563 270 300 17.3 19
24331910 270 290 14.6 16
24339213 260 280 14.6 16
24359559 254 274.6 14.6 16
24373997 250 280 20.9 23
24223333 250 280 17.3 19
24291160 250 270 14.6 16
24362532 245 267 14.1 15.5
24314612 240 270 18 7.1
24352222 240 270 17.3 19
24290247 240 260 14.6 16
24366784 235 255 14.6 16
24223336 230 250 14.6 16
24376131 225 245 14.6 16
24380946 220 250 22.8 25
24367393 220 250 21.8 24
24375979 220 250 18.2 20
24223332 220 250 17.3 19
24223331 220 240 14.6 16
24362845 215 245 20.9 23
24372392 215 240 18.2 20
49030353 215 235 14.6 16
24356092 215 235 14.6 16
24337781 210 230 14.6 16
24361564 205 235 21.8 24
24380945 200 225 18.2 20
24223330 200 225 14.6 16
24223329 200 220 14.6 16
24339703 200 215 11.4 12.5
24370226 190 215 17.1 18.8
24328527 190 210 14.6 16
24368634 190 210 13.7 15
24373150 185 200 11.4 12.5
24359904 180 210 22.8 25
24375978 180 210 17.3 19
24380944 180 205 18.2 20
24223328 180 205 14.6 16
24223327 180 200 14.6 16
24374656 180 200 11.8 13
24338964 170 190 14.6 16
24363184 165 180 14.6 16
530551 160 190 17.3 19
24223326 160 185 14.6 16
24362611 160 180 17.3 19
24266878 160 180 14.6 16
24374166 160 175 14.6 16
24315962 158.8 177.8 12.3 13.5
24223325 150 180 17.3 19
24223324 150 170 14.6 16
24295710 150 170 11.8 13
24375686 145 165 14.6 16
24377812 140 170 17.3 19
24223323 140 160 14.6 16
24376017 140 160 11.8 13
24357236 140 155 11.4 12.5
24362625 135 165 17.3 19
24360106 135 155 14.6 16
24315961 133.4 152.4 12.3 13.5
24370486 130 160 17.3 19
24223322 130 150 14.6 16
24358619 130 145 14.6 16
24362610 130 145 13.7 15
24359621 130 145 10 11
24213884 130 140 15 16
24371643 125 155 17.3 19
24223321 125 145 14.6 16
24251890 125 140 10.9 12
24371176 120 145 17.3 19
24223320 120 140 14.6 16
24360190 120 135 10.9 12
24361949 115 140 17.3 19
24223319 115 135 14.6 16
24251889 115 130 10.9 12
24296086 114.3 133.35 15.2 16.7
24223318 110 130 14.6 16
24376016 110 130 11.8 13
24242341 110 125 12 13
24239427 110 125 10.9 12
24368411 110 125 9.6 10.6
24374786 110 125 9 9.9
24369546 110 120 7.7 8.5
24315960 108 127 12.3 13.5
24223317 105 125 14.6 16
24300392 105 120 11.4 12.5
24213883 105 115 12 13
24366780 105 115 10 11
24360191 102 117 10.9 12
24187222 100 120 14.6 16
24374793 100 120 12 13.2
24223316 100 120 11.4 13
24223314 100 115 11.4 13
24266877 100 115 10.9 12
24235802 100 115 10 11
24374763 100 115 9 9.9
24315958 95.3 114.3 15.2 16.7
24315959 95.3 114.3 12.3 13.5
24374811 95 115 12 13.2
24265228 95 115 11.4 13
24369674 95 110 11.8 13
24374810 95 110 10 11
24374785 95 110 9 9,9
24289376 90 110 14.6 16
24223313 90 110 11.4 13
24223312 90 105 11.4 13
24223311 90 105 11.4 12.5
24235803 90 105 10 11
24251888 90 102 8.7 9.6
24209770 90 100 10 11
24368410 90 100 6.8 7.5
24375705 90 99.6 7.6 8.4
24359373 90 98 8.2 9
24293541 90 98 5.7 6.3
24362624 88.9 107.95 14.4 15.9
24360733 88 105 12.7 14
24194923 85 100 11.4 13
24223310 85 100 11.4 12.5
24374762 85 100 10 11
24374873 85 100 9 9.9
24266876 85 97 8.7 9.6
24213882 85 95 11.8 12.5
24296094 82,55 101.6 15.2 16.7
24223309 80 100 14.6 16
24223308 80 100 11.4 13
24187220 80 95 11.4 13
24223307 80 95 11.4 12.5
24373621 80 95 10 11
24374809 80 95 9 9.9
24241622 80 92 8.7 9.6
24223306 80 90 11.8 13
24187219 80 90 10 11
24363199 80 90 7.3 8
24370708 75 95 14.6 16
24223305 75 90 10 11
24374761 75 90 9 9.9
24374792 75 88 10 11
24266875 75 87 8.7 9.6
24227939 75 85 12 12.5
24363261 73 85 11.4 12.5
24374940 73 85 8.7 9.6
24358384 72 92 14.6 16
24362391 72 84 8.7 9.6
24223303 70 90 14.6 16
24223304 70 90 11.4 13
24363001 70 86 14 15.5
24223302 70 85 11.4 13
24212669 70 85 11.4 12.5
24233880 70 85 10 11
24236857 70 82 8.7 9.6
24187214 70 80 11.8 13
24373899 70 79.6 7.9 8.7
24314731 70 78 8.2 9
24223301 65 85 11.4 13
24223300 65 80 11.4 13
24373620 65 80 10 11
24251887 65 77 8.7 9.6
24187213 65 75 11.8 13
24370874 65 75 7.3 8
49000807 65 73 8.2 9
24289375 63 83 14.6 16
24370282 63 80 12.7 14
24223299 63 78 11.4 12.5
24236586 63 78 10 11
24246801 63 75 8.7 9.6
24223298 63 73 11.8 13
24373695 60 80 16.6 18.2
24187212 60 75 11.4 13
24223297 60 75 11.4 12.5
24337823 60 75 10.4 11
24261224 60 72 10 11
24187211 60 70 11.8 13
24223296 60 70 10 11
24236858 60 70 7.3 8
24219456 60 68 8 9
24223295 56 71 11.4 13
24223294 56 71 11.4 12.5
24367432 56 68 10 11
24236884 56 66 10 11
24223293 56 66 8.2 9
24266874 56 66 7.3 8
24187209 55 70 11.4 13
24238292 55 70 10 11
24261225 55 67 10 11
24374139 55 67 8.7 9.6
24187208 55 65 11.8 13
24187207 55 65 10 11
24239429 55 65 7.3 8
24223292 55 63 8.2 9
24290846 55 63 8 9
24236859 55 63 7.3 8
24371047 53 63 9 10
24374053 52 62 6.4 7
24362578 51 61.4 6.4 7
24333466 50.8 69.85 11.8 13.5
24296042 50.8 66.6 12.7 13.4
24333369 50.8 60.3 6.5 7.1
24223291 50 70 11.4 13
24223290 50 65 11.4 12.5
24187206 50 65 10 11
24223289 50 62 10 11
24187205 50 60 10 11
24223251 50 60 7.3 8
24223250 50 58 8.2 9
24290848 50 58 8 9
24233879 48 56 8.2 9
24360464 47 59 9.6 10.5
24375268 46 56 7.3 8
24187204 45 60 10 11
24373871 45 57 8,7 9,6
24223287 45 55 10 11
24223286 45 55 7,3 8
24223285 45 53 8,2 9
24290032 45 53 8 9
24333357 44.5 54 6.5 7.1
24292881 44 52 5.7 6.3
24223284 42 52 10 11
24261932 42 50 5.7 6.3
24360465 40 58 11.4 12.5
24261407 40 55 11.4 12.5
24187203 40 55 10 11
24187702 40 50 10 11
24223282 40 50 8.2 9
24223283 40 50 7.3 8
24223281 40 48 8.2 9
24239428 40 48 5.7 6.3
24369267 37 47 10 11
24375441 36 52 13 14.3
24269445 36 51 11.4 12.5
24358522 36 51 10 11
24345948 36 50 10 11
24267642 36 48 10 11
24314092 36 48 7.3 8
24187200 36 46 10 11
24223280 36 46 7.3 8
24355159 36 44 8.2 9
24266873 36 44 5.7 6.3
24374124 35 52 11.8 13
24187199 35 50 10 11
24187198 35 45 10 11
24360144 35 43 6.8 7.5
24236860 35 43 5.7 6.3
24368632 34 44 6.4 7
24187197 32 47 10 11
24369393 32 44 8.2 9
24223279 32 42 10 11
24249570 32 42 8.2 9
24223278 32 42 7.3 8
24258895 32 40 8.2 9
24234472 32 40 5.7 6.3
24223277 30 45 10 11
24373870 30 42 8.7 9.6
24187196 30 40 10 11
24223276 30 38 8.2 9
24236861 30 38 5.7 6.3
24368792 29 37 5.7 6.3
24261406 28 43 11.4 12.5
24223275 28 40 10 11
24187195 28 38 8.2 9
24223274 28 38 7.3 8
24223273 28 36 10 11
24249569 28 36 8.2 9
24237159 28 36 5.7 6.3
24268341 27 36 6.8 7.5
24372447 26 36 10 11
24370951 25.4 34.56 5.9 6.5
24223272 25 40 10 11
24362136 25 38 8.6 9.5
24223271 25 35 8.2 9
24223070 25 35 7.3 8
24360709 25 35 6.4 7
24308334 25 33 8.2 9
24223269 25 33 5.7 6.3
24369456 22 35 9.1 10
24187193 22 32 8.2 9
24223268 22 32 7.3 8
24223267 22 30 8.2 9
24249568 22 30 7.3 8
24236862 22 30 5.7 6.3
24187192 20 30 8.2 9
24223266 20 30 7.3 8
24223265 20 28 5.7 6.3
24187191 18 28 8.2 9
24223264 18 28 7.3 8
24223263 18 26 8.2 9
24268070 18 26 5.7 6.3
24223262 16 26 8.2 9
24223261 16 26 7.3 8
24223260 16 24 5.7 6.3
24223258 15 25 8.2 9
24223257 14 24 8.2 9
24223256 14 24 7.3 8
24268060 14 22 5.7 6.3
24187190 12 22 8.2 9
24223255 12 22 7.3 8
24223254 12 20 5.7 6.3
24354784 11 19 5.7 6.3
24223253 10 20 8.2 9
24223249 10 20 7.3 8
24223248 10 18 5.7 6.3
24223247 8 16 8.2 9
24223246 8 16 5.7 6.3
