Turcon® Variseal® W2

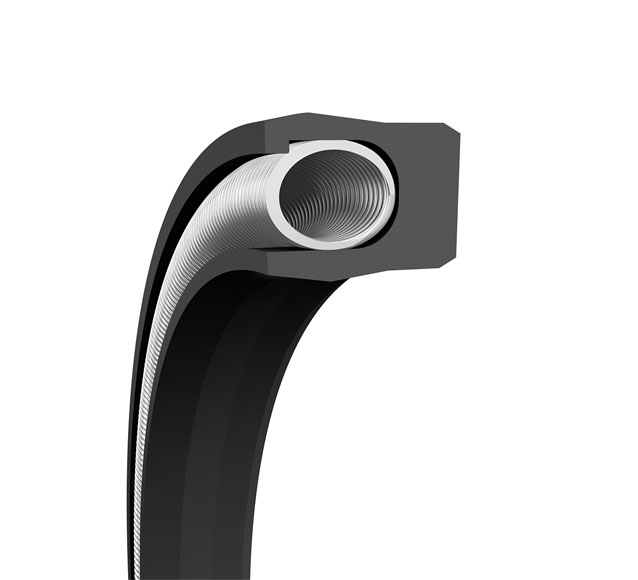

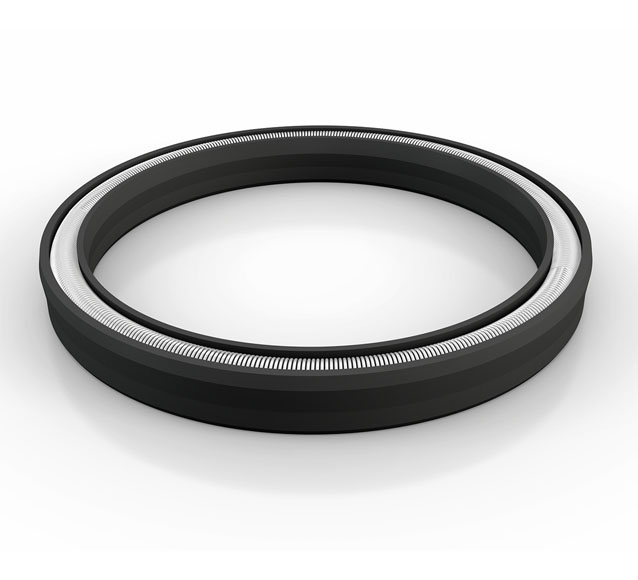

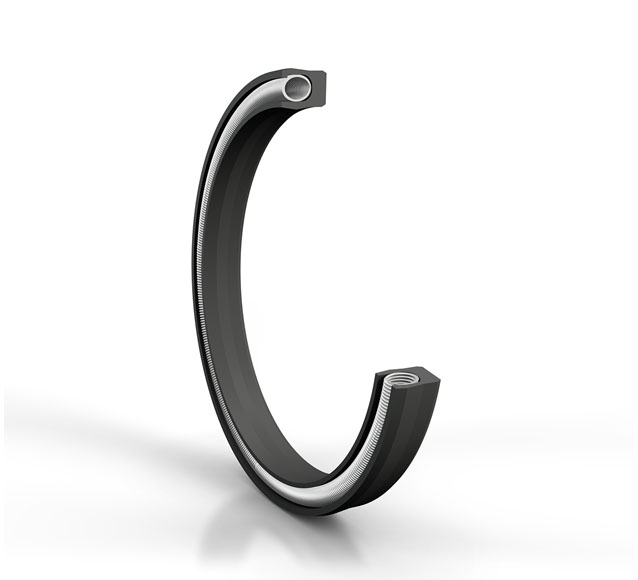

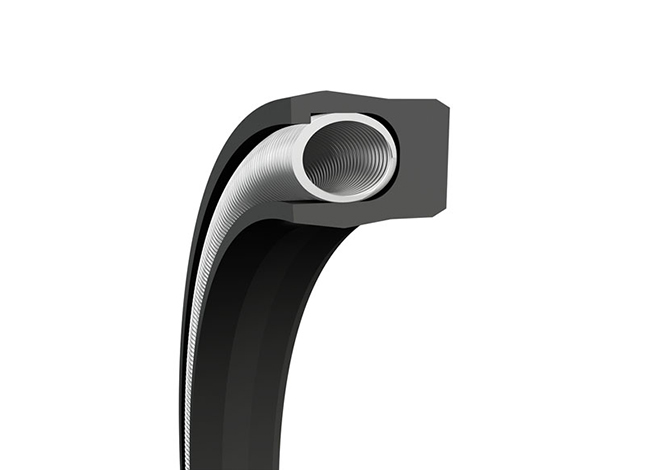

Turcon® Variseal® W2 is a single acting seal consisting of a U-shaped jacket and a corrosion resistant Slantcoil® spring.

Commercial Description

Turcon® Variseal® W2 is a single acting seal consisting of a U-shaped jacket and a corrosion resistant Slantcoil® spring. The Slantcoil® spring in the Variseal® W2 provides an almost constant load irrespective of hardware tolerances, eccentricity and seal wear. At low and zero pressure, the metal spring provides the primary sealing force. As the system pressure increases, the main sealing force is achieved by the system pressure and ensures a tight seal from zero to high pressure.

Installation & Handling

Turcon® Variseal® W2 is a single acting seal consisting of a U-shaped jacket and a corrosion resistant Slantcoil® spring. The Slantcoil® spring in the Variseal® W2 provides an almost constant load irrespective of hardware tolerances, eccentricity and seal wear. At low and zero pressure, the metal spring provides the primary sealing force. As the system pressure increases, the main sealing force is achieved by the system pressure and ensures a tight seal from zero to high pressure. The possibility of matching suitable materials for the seal and the spring allows use in a wide range of applications going beyond the field of hydraulics, e.g. in the chemical and electronics industry. Variseal® W2 seals can be installed in grooves to AS4716 and ISO 3771. The seal can only be installed to a limited extent in closed grooves.

Installation dimensions

Material Properties

  • Pressure :
    • For static loads : 40 MPa
    • For dynamic loads : 20 MPa
  • Speed :
    • Reciprocating : Up to 15 m/s
    • Rotating : Up to 1.27 m/s
  • Temperature : -70 °C to +260 °C
  • Media : Virtually all fluids, chemicals and gases Clearance : The maximum permissible radial clearance Smax. is shown in the table on the next page as a function of the operating pressure and functional diameter.

Seal Capabilities

  • Suitable for reciprocating and light duty rotary movement
  • Constant initial squeeze of spring over a large control area
  • Interchangeable with O-Ring and Back-up Ring in most cases
Part No. ID OD H1 H2 Quantity Pick
RVJ402000-T40SM 200.0 212.2 9.5
RVJ401800-T40SM 180.0 192.2 9.5
RVJ401600-T40SM 160.0 172.2 9.5
RVJ401400-T40SM 140.0 152.2 9.5
RVJ401250-T40SM 125.0 137.2 9.5
RVJ301100-T40SM 110.0 119.4 7.1
RVJ301000-T40SM 100.0 109.4 7.1
RVJ300900-T40SM 90.0 99.4 7.1
RVJ300800-T40SM 80.0 89.4 7.1
RVJ300700-T40SM 70.0 79.4 7.1
RVJ300630-T40SM 63.0 72.4 7.1
RVJ300560-T40SM 56.0 65.4 7.1
RVJ300500-T40SM 50.0 59.4 7.1
RVJ300450-T40SM 45.0 54.4 7.1
RVJ300400-T40SM 40.0 49.4 7.1
RVJ200360-T40SM 36.0 42.2 4.8
RVJ200320-T40SM 32.0 38.2 4.8
RVJ200280-T40SM 28.0 34.2 4.8
RVJ200250-T40SM 25.0 31.2 4.8
RVJ200220-T40SM 22.0 28.2 4.8
RVJ200200-T40SM 20.0 26.2 4.8
RVJ100180-T40SM 18.0 22.5 3.6
RVJ100160-T40SM 16.0 20.5 3.6
RVJ100150-T40SM 15.0 19.5 3.6
RVJ100140-T40SM 14.0 18.5 3.6
RVJ100120-T40SM 12.0 16.5 3.6
RVJ100100-T40SM 10.0 14.5 3.6
RVJ000080-T40SM 8.0 10.9 2.4
RVJ000060-T40SM 6.0 8.9 2.4
RVJ000050-T40SM 5.0 7.9 2.4
RVJ000040-T40SM 4.0 6.9 2.4
RVJ000030-T40SM 3.0 5.9 2.4
